Online Rheometer ( Viscosensor )

Online Rheometer ( Viscosensor )
Online Rheometer ( Viscosensor )
Product Code : Viscosensor
Brand Name : DYNISCO
Product Description

Backed by well renowned vendors' of the industry, we are instrumental in providing Online Rheometer (Viscosensor). This rheometer is widely used to measure the suspension, liquid and slurry flow. The provided rheometer is manufactured using pristine grade components with the help of latest techniques in conformity with set quality standards. Furthermore, we are offering this Online Rheometer ( Viscosensor )to our clients at a marginal price within the specific time span.


  • Easy to install

  • Longer service life

  • Low power consumption

  • Negligible maintenance

Features and Benefits:

  • Attached to process using a single M18

  • Cost effective solution for on-line viscosity or melt index monitoring

  • No waste stream, tested sample is returned to process

  • On-line ASTM D1238 melt flow rate

  • On-line apparent viscosities

  • Replaceable capillary

  • Compact measuring head for close extruder connection: 8″ diameter by 17″ length

  • Robust and precise pressure transducer for high accuracy

  • Simple “in the field” calibration

  • Platinum RTD melt temperature sensor immersed in molten stream for accurate test temperature measurement

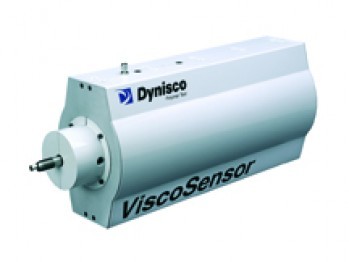

Specifically designed for the thermoplastics resin industry, the ViscoSensor provides continuous measurements of the melt flow rate or apparent viscosity directly on the manufacturing process. The ViscoSensor system consists of two parts: a Viscosensor, connected directly to the process, which samples, conditions, and measures the melt flow of the resin, and a VCU (ViscoSensor Control Unit) that controls the Viscosensor test parameters (temperature, pressure, rate), provides outputs of computed results, and provides communications to an external distributed control system when required.
